Additional information
| Mainboard / Backplane | Industrial Mainboard (mini-ITX), 24/7 operation, long-term available |
|---|---|
| Processor | Intel® Core™ i CPUs 10th Generation |
| Chipset | Intel® W480E |
| RAM | 2x DDR4 SO-DIMM |
| Graphic Card | Intel® UHD 630 (integrated in CPU) |
| Mass Storage | Internal: 1x M.2 |
| I/O | 2x 1 GBit LAN (RJ45) |
| Expansions (mechanical) | 1x M.2 (E-key, Type: 2230) for WIFI/BT |
| Power Supply | 16 ~ 30 VDC |
| Chassis | Robust 1mm galvanized sheet steel with powder coating |

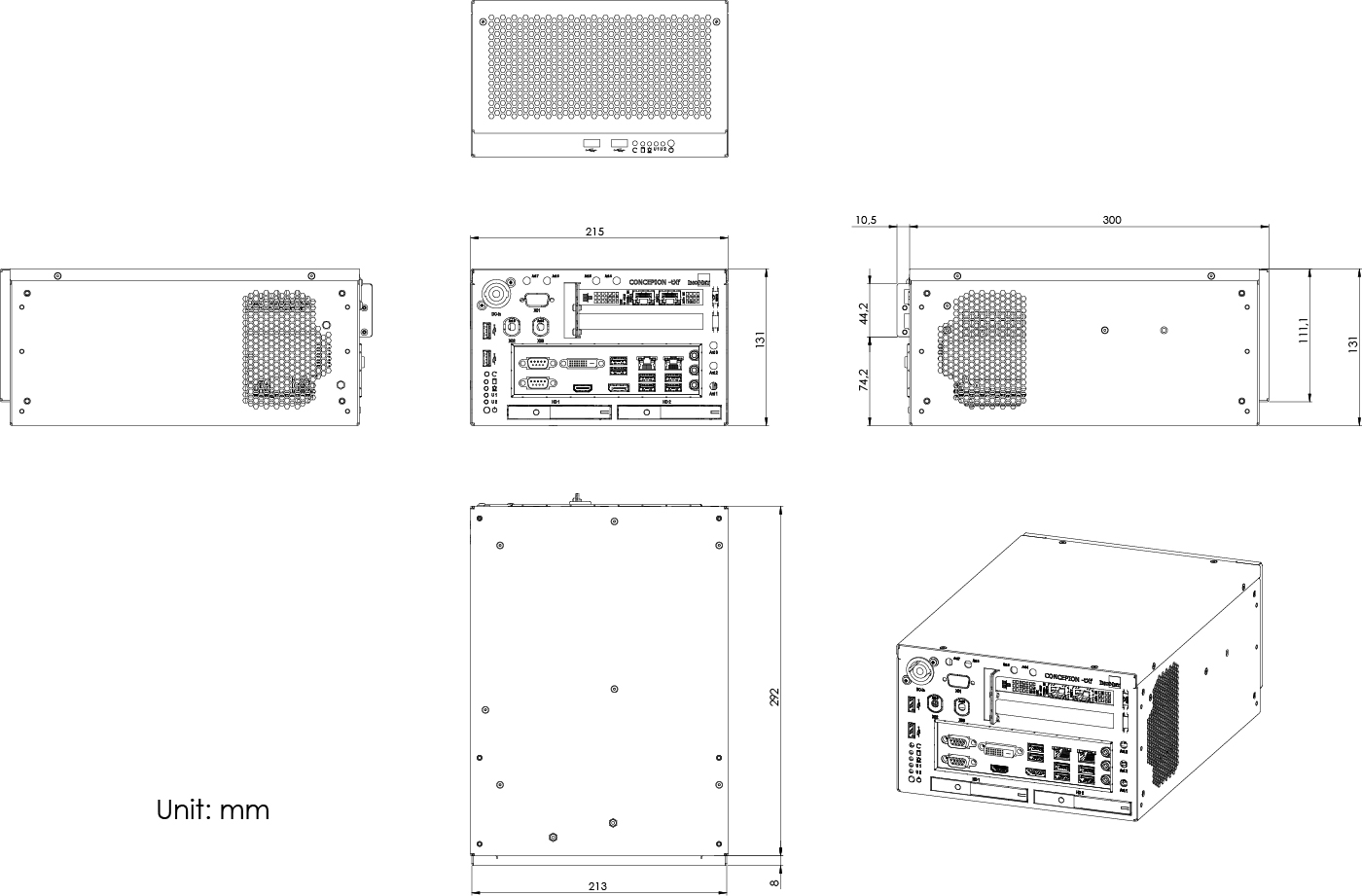

| Dimensions (W x H x D) | 215 x 224 x 303 mm |
| Cooling | Active, 2x 80 mm fans |
| Mounting | 19" compatible (two systems side by side) |
| Communication | Wi-Fi/Bluetooth (optional): Intel® M.2 module, 802.11ax dual band, Bluetooth® 5.1 |
| Supported Operating Systems | Microsoft® Windows® 11 |
| Operating Temperature | 0° ~ 55° C |
| Storage Temperature | -20° ~ 70° C |
| Relative Humidity (operation) | 10 ~ 90 % (non condensing) |
| IP Protection Class | IP20 |
