High-End Line

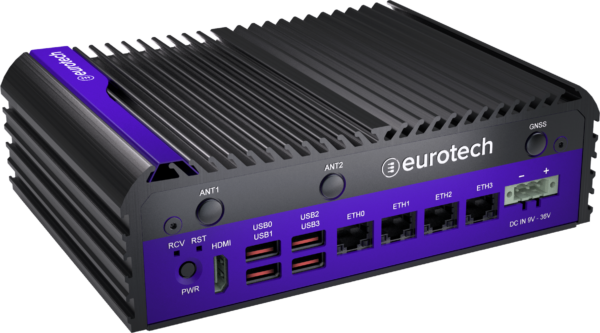

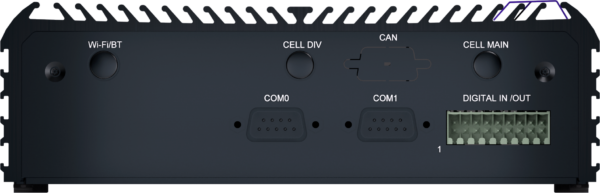

Eurotech ReliaCOR 31-11
Fanless Embedded PC, based on NVIDIA® Jetson Orin™ NX for AI applications
- NVIDIA® Jetson Orin™ NX, up to 100 TOPS
- Best in Class Cybersecurity
- PoE Camera Support
- Certified Radios
- Compact and fanless
- Easy to Program
- Cloud Certified
Additional information
| Core | NVIDIA® Jetson Orin™ NX, 16 GB |
|---|---|
| Processor | arm® CORTEX® A78AE v8.2 64-bit |
| Security | TPM 2.0 Support |
| RAM | LPDDR5 |
| Graphic Card | NVIDIA® Ampere |
| Mass Storage | Internal: 1x M.2 (M-key, Type: 2242/2280) |
| I/O | 4x 1 GBit LAN (RJ45), 4x PoE+ |
| Expansions (mechanical) | 1x M.2 (E-key, Type: 2230) |
| Power Supply | 9 ~ 36 VDC |
| Chassis | Robust aluminum industrial chassis |
| Dimensions (W x H x D) | 192 x 58 x 140 mm |
| Mounting | Optional: Wall Mount/DIN Rail |
| Cooling | Passive |
| Communication | Wi-Fi/Bluetooth (optional) |
| Operating Temperature | -20° ~ 55° C |
| Storage Temperature | -30° ~ 85° C |
| Humidity | 10% to 95% relative humidity (non-condensing) |
| Software | Operating System: Linux® Ubuntu with JetPack |
| IP Protection Class | IP40 |
| Certifications | Cybersecurity: ISA/IEC 62443-4-1/-4-2 SL2* *planned |
