Embedded PC InoGest® Copy-Station tXf-v3-L-R680E

Additional information

Mainboard / Backplane	Industrial Mainboard (mini-ITX), 24/7 operation, long-term available
Processor	Intel® Core™ i 12th/13th/14th Generation Up to 65 Watt TDP Socket 1700 Intel® Turbo-Boost: Depends on the selected configuration
Chipset	Intel® R680E
RAM	2x DDR5 SO-DIMM max. 64 GB DDR5
Graphic Card	Intel® UHD 730/770 (integrated in CPU)

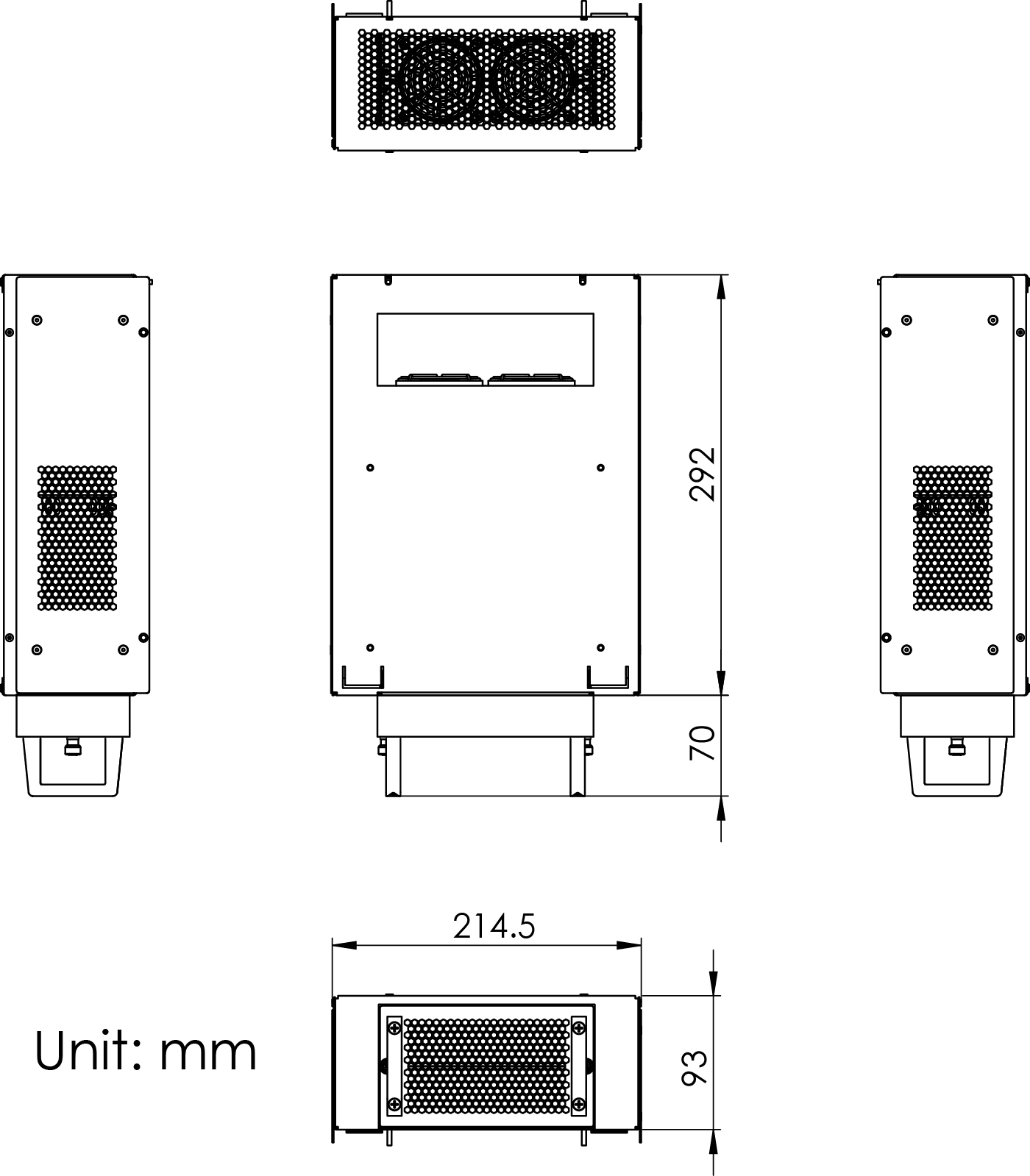

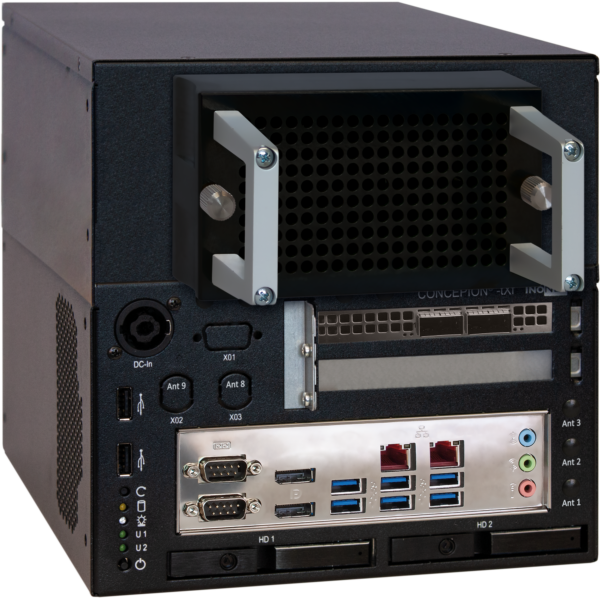

Mass Storage	Internal: 2x M.2 (M-key, type: 2280) External: 2x 2.5" HDD/SSD (in shuttle) Integrated QuickTray®-v3, up to 240 TB, via RAID controller PCIe x8 (Gen 4), optional data encryption
I/O	1x 2.5 GBit LAN (RJ45) 2x 25 GBit LAN (SFP28), NVIDIA® ConnectX®-6 Lx, PCIe x8 (Gen 4) Optional: 4x 1 GBit LAN (RJ45) with PoE 2x USB 2.0 4x USB 3.2 (Gen 1) 2x USB 3.2 (Gen 2) 1x RS-232 1x RS-232/422/485 2x DisplayPort 1x LVDS/eDP (internal) 3x Audio (Line-In, Line-Out, Mic) 1x GPIO Header, 8 Bit (internal)
Power Supply	12 ~ 48 VDC, 500/600 Watt Efficiency >94% NL4 connector (Neutrik) Optional: 11 ~ 30 VDC, 250/300 Watt, NL4 connector (Neutrik), four-pin with ignition pin
Chassis	Robust 1mm galvanized sheet steel with powder coating On request: Intrusion Detection

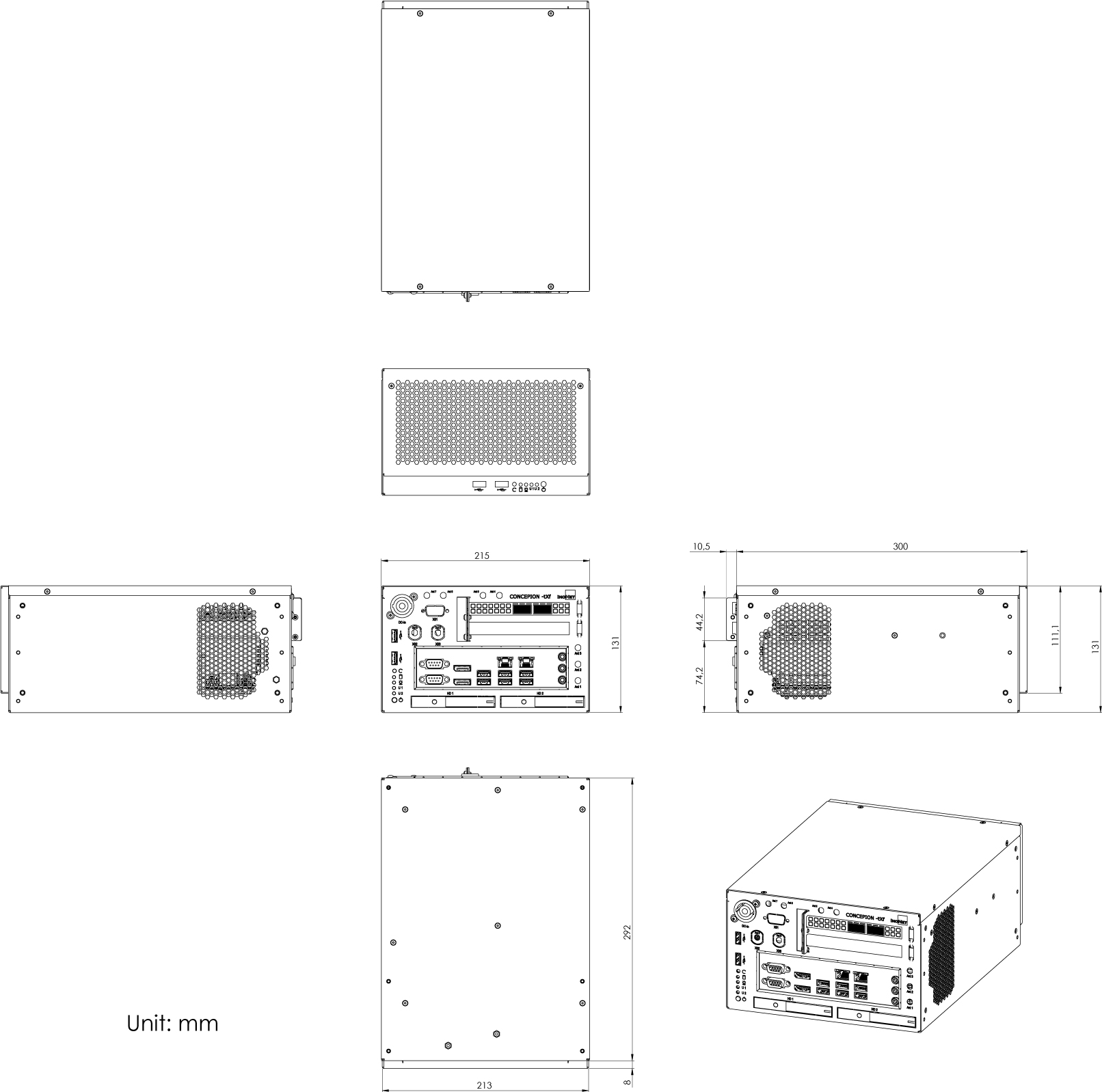

Dimensions (W x H x D)	215 x 224 x 303 mm
Cooling	Active, 2x 80 mm fans Filter cartridge incl. mat
Mounting	19" compatible (two systems side by side) Desktop Wall mount

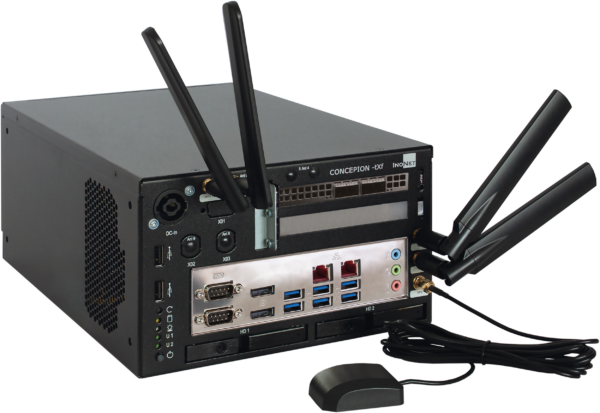

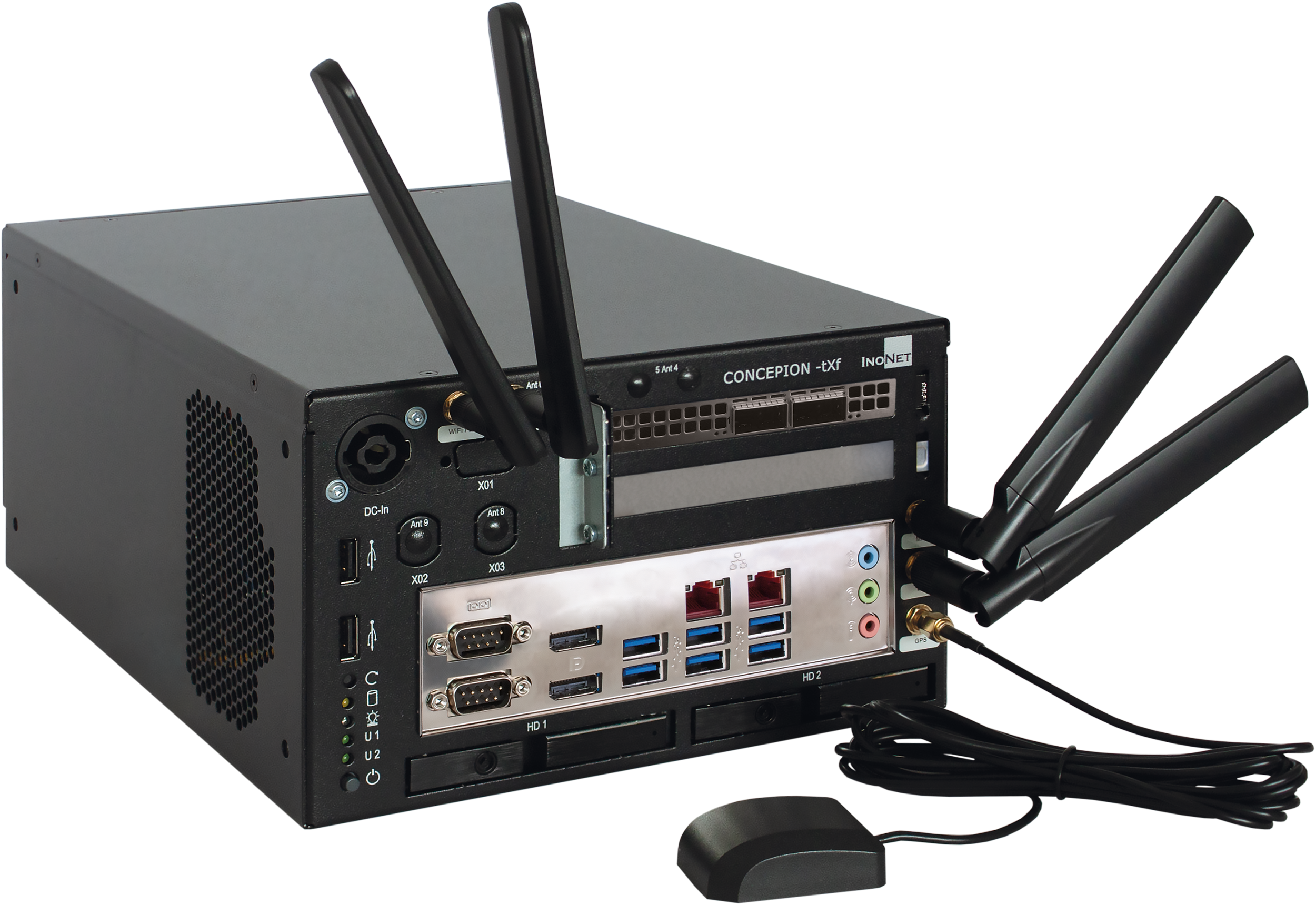

Communication	Wi-Fi/Bluetooth (optional): Intel® M.2 module, 802.11ax dual band, Bluetooth® 5.1 GNSS/LTE (optional): Support for GPS, GLONASS, BeiDou, Galileo, QZSS, Micro SIM slot for 3G/4G (On request: 5G with additional antennas)
Operating Temperature	0° ~ 55° C
Storage Temperature	-20° ~ 70° C
Relative Humidity (operation)	10 ~ 90 % (non condensing)
IP Protection Class	IP20
Features	Watchdog Timer, iAMT, TPM 2.0
Supported Operating Systems	Microsoft® Windows® 11 Microsoft® Windows® 10 Linux®

System Description

The embedded PC InoGest™ Copy-Station tXf-v3-L-R680E with Intel^® Core™ i CPUs up to the 14th generation is ideally suited for the simple and efficient transfer of data from vehicles, test facilities and other sources. The system supports various transfer protocols and formats to ensure maximum flexibility. These include LAN (SFP28) with up to 25 GBit or optional Wi-Fi, Bluetooth, GNSS and LTE (5G on request). The integrated QuickTray^®-v3 with up to 26 GB/s write rate and up to 240 TB storage capacity deserves special mention here. The robust system is Microsoft^® Windows^® 11 ready and designed for the automotive environment.

InoGest® Copy-Station tXf-v3-L-R680E

Compact, actively cooled system for use as a copy station in the automotive environments
