High-End Line

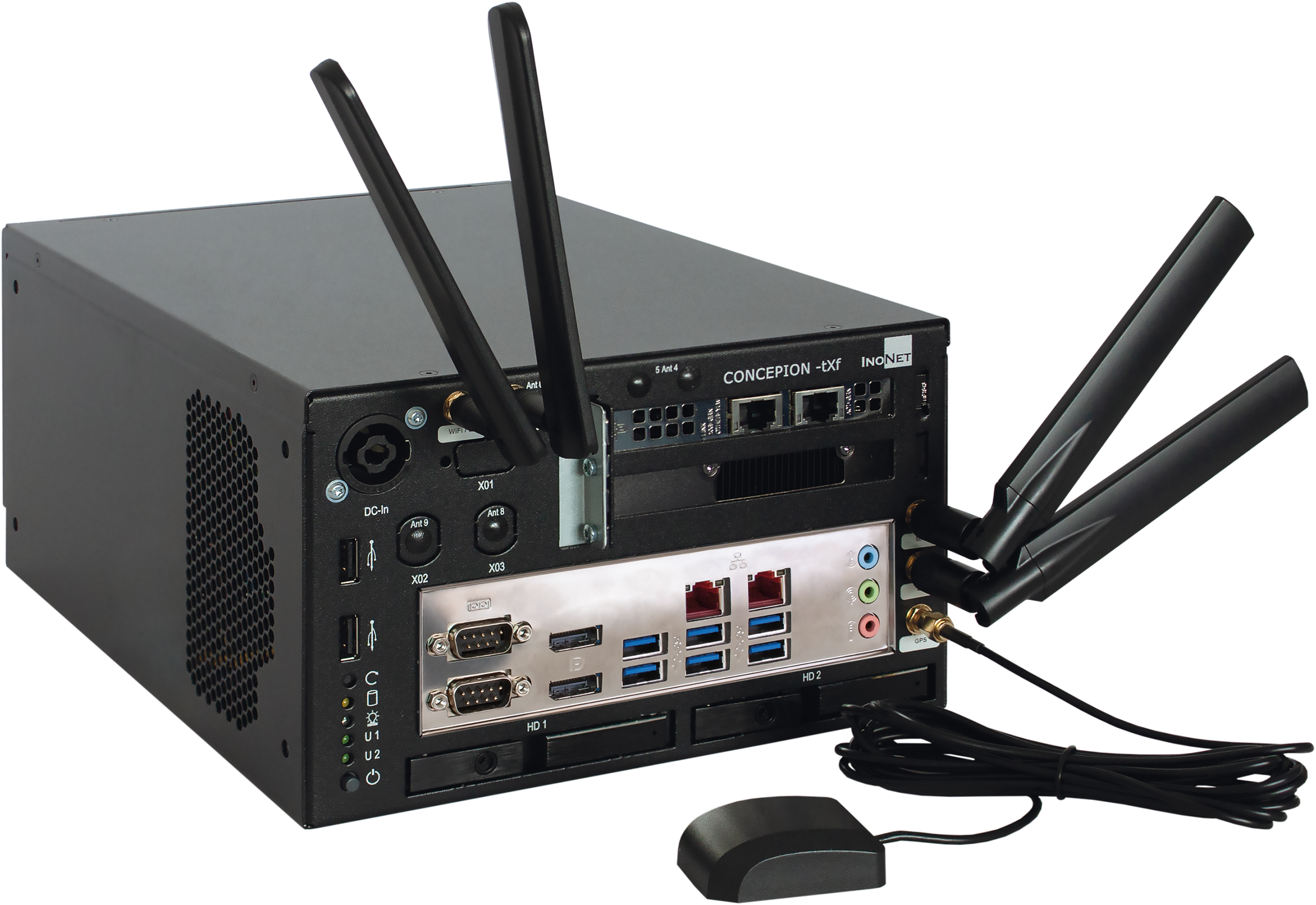

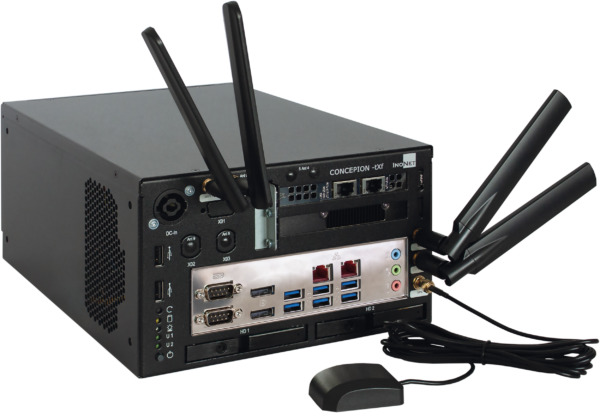

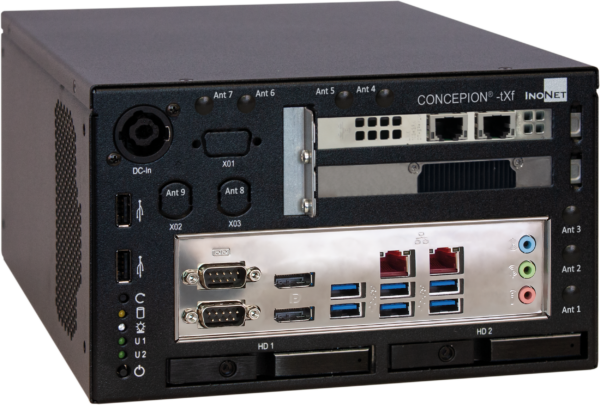

The in-vehicle PC Concepion®-tXfa-v3-L-R680E with Intel® Core™ i CPUs up to the 14th generation combines high computing power thanks to a powerful GPU and AI support with a compact form factor. With ignition support (Ignition Ready), it is ideal for use in vehicles. Optional Wi-Fi, Bluetooth, GNSS, LTE (5G on request) offer a wide range of networking options. The robust AI Edge platform is Microsoft® Windows® 11 ready.
| Mainboard / Backplane | Industrial Mainboard (mini-ITX), 24/7 operation, long-term available |
|---|---|
| Processor | Intel® Core™ i 12th/13th/14th Generation |
| Chipset | Intel® R680E |
| RAM | 2x DDR5 SO-DIMM |
| Graphic Card | Intel® UHD 730/770 (integrated in CPU) |
| Mass Storage | Internal: 2x M.2 (M-key, type: 2280) |
| I/O | 2x 2.5 GBit LAN (RJ45), iAMT support |
| Power Supply | 11 ~ 30 VDC |
| Chassis | Robust 1mm galvanized sheet steel with powder coating |

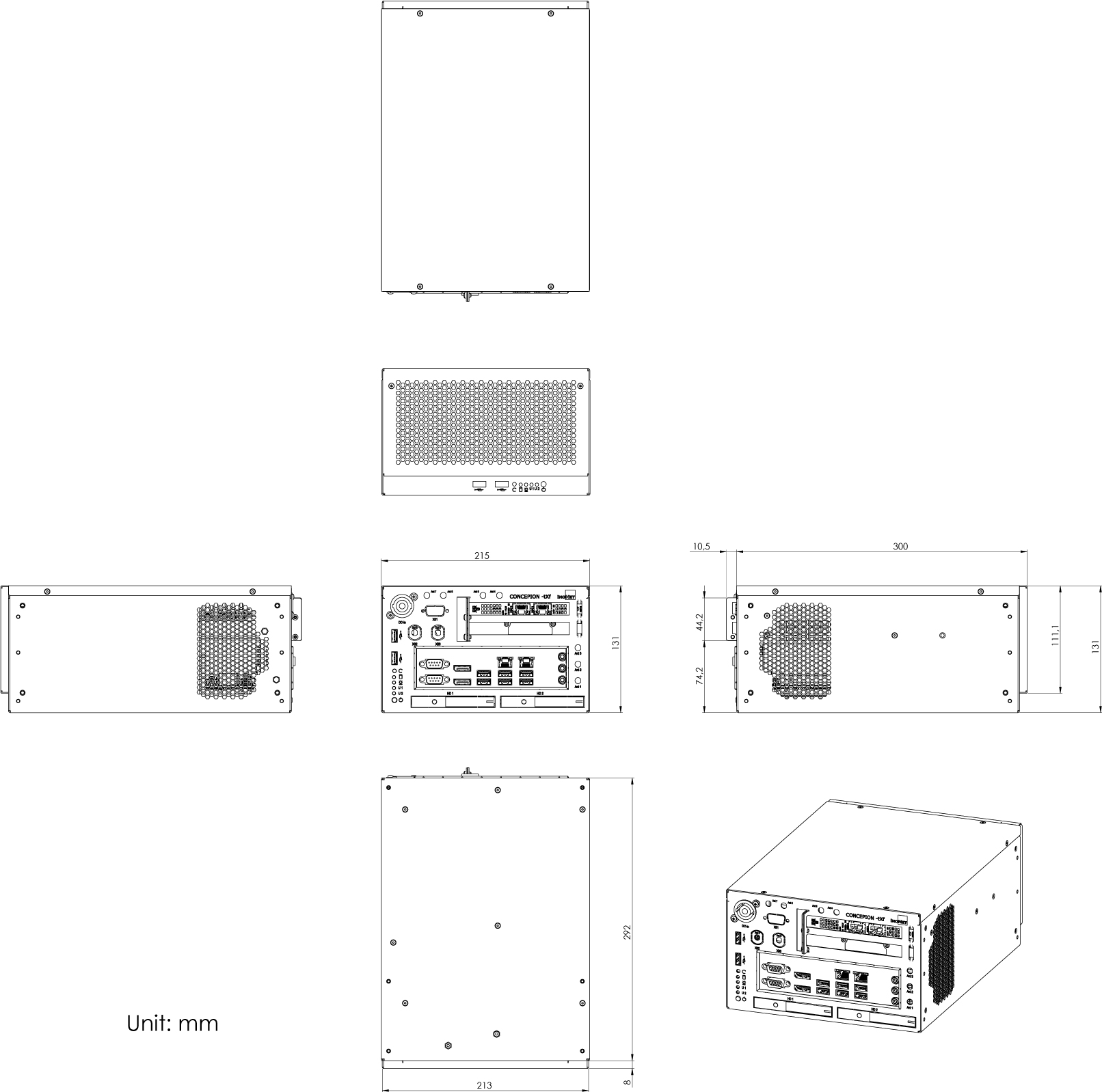

| Dimensions (W x H x D) | 215 x 131 x 303 mm |
| Cooling | Active, 2x 80 mm fans |
| Mounting | 19" compatible (two systems side by side) |
| Communication | Wi-Fi/Bluetooth (optional): Intel® M.2 module, 802.11ax dual band, Bluetooth® 5.1 |
| Operating Temperature | 0° ~ 55° C |
| Storage Temperature | -20° ~ 70° C |
| Relative Humidity (operation) | 10 ~ 90 % (non condensing) |
| IP Protection Class | IP20 |
| Features | Watchdog Timer, iAMT, TPM 2.0 |
| Supported Operating Systems | Microsoft® Windows® 11 |
